General Specifications
Bluetooth version
4.2
Support
A2DP 1.3, AVRCP 1.6
Transducers
Woofer 1 x 120mm, Tweeter 1 x 25mm
Rated Power
1 x 50W RMS Bi-amp (AC mode)
Frequency response
50Hz – 20kHz (-6dB)
Signal to noise ratio
80dB A-weighted
Power supply
19V/2A
Battery type
3.635V/3283mAh Lithium-ion
Battery charge time
5 hours
Music playtime
up to 8 hours (Varies by volume level and music content)
Bluetooth transmitter power
0 – 9dBm
Bluetooth transmitter frequency range
2402MHz – 2480MHz
Bluetooth transmitter modulation
GFSK, π/4 DQPSK, 8DPSK
Dimension (H x W x D)
284mm x 291mm x 128mm
Weight
2980g

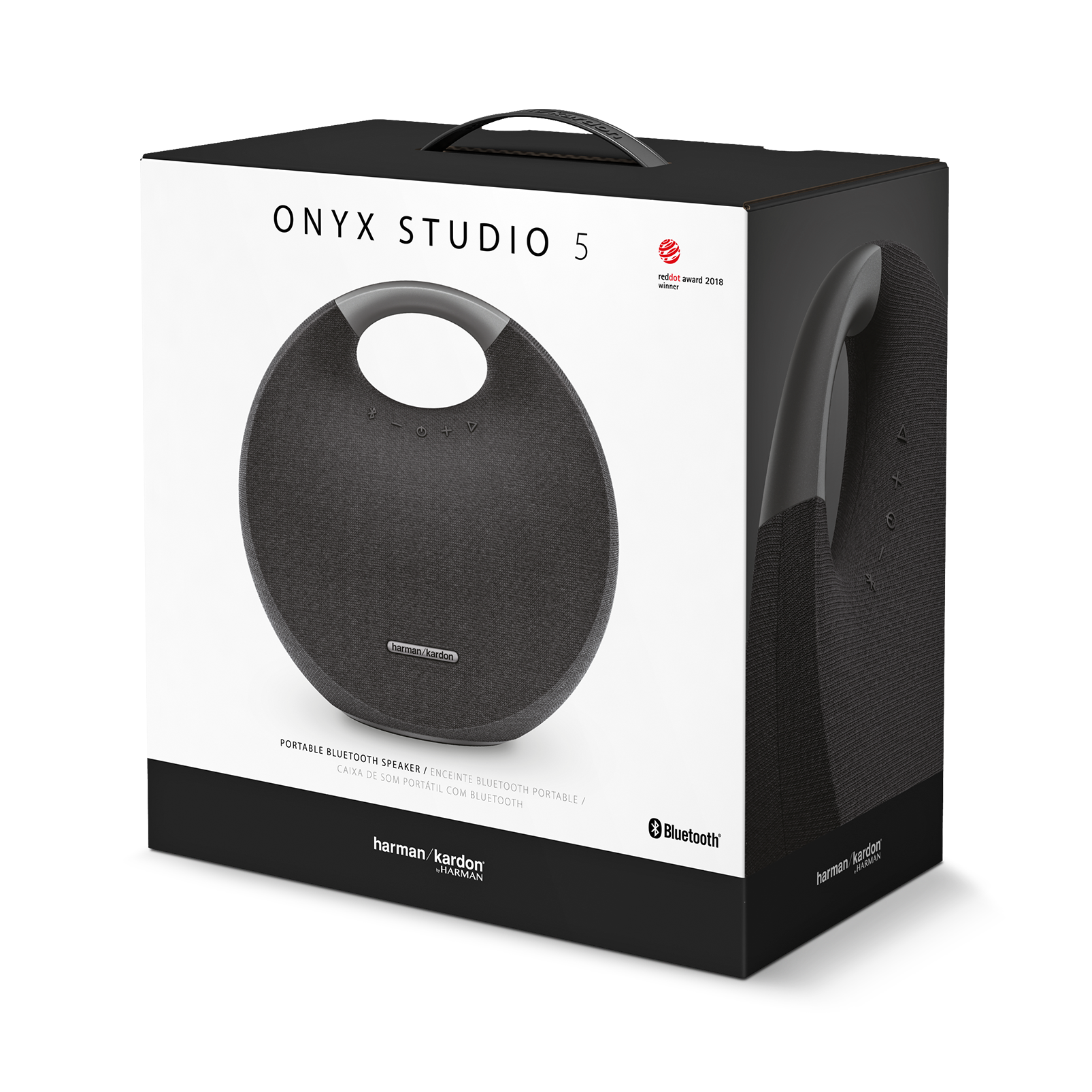

- 1x Harman Kardon Onyx Studio 5
- 1x Power adaptor
- 1x Quick start guide
- 1x Safety sheet
- 1x Warranty card

The Harman Kardon Onyx Studio 5’s advanced and distinctive design is expressed through its signature round silhouette, premium fabric cover of the speaker enclosure and an integrated aluminum handle for easy portability. Destined to be the best sounding, full featured portable Bluetooth speaker in its class, the Onyx Studio 5 offers 8 hours of playtime as well as wireless dual sound, which wirelessly connect two Harman Kardon Onyx Studio 5 speakers to elevate music listening experience. Commanding attention at every angle, the Onyx Studio 5 is an iconic design piece in any home.
